電解電容是一種應用極為廣泛的電子元件，就我們日常生活中常用的液晶電視、筆記本電腦、ipad、數碼相機、LDE節能燈等等都有電容的身影。今天紅寶電子小編就給大家詳細介紹下電解電容的命名規則以及電解電容常見的封裝形式及意義。
Electrolytic capacitor is a kind of widely used electronic components, such as LCD TV, notebook computer, iPad, digital camera, LDP energy-saving lamp and so on. Today, Hongbao electronic editor will give you a detailed introduction to the naming rules of electrolytic capacitors and the common packaging forms and significance of electrolytic capacitors.
電解電容封裝命名規則
Naming rules of electrolytic capacitor package
一般電解電容的耐壓分檔為6.3V，10V，16V，25V，50V等。
Generally, the withstand voltage grades of electrolytic capacitors are 6.3V, 10V, 16V, 25V, 50V, etc.
電解電容的常見封裝形式
Common packaging forms of electrolytic capacitors
電解電容封裝一般按尺寸大小可以分為：引線型（也叫直插型）、牛角型（也叫焊針型），螺栓型這三種。
Electrolytic capacitor package can be generally divided into lead type (also known as plug-in type), ox horn type (also known as solder pin type) and bolt type.
焊針型最常見的是二角焊針，但也有三角焊針、四角焊針和不規格的多角焊針型等。
The most common type of welding pin is the two corner welding pin, but there are also triangle welding pin, four corner welding pin and non-standard multi angle welding pin.
另外還有一種叫焊片型，不太常用，尺寸類似牛角型大小。
In addition, there is a type called solder, which is not commonly used, and its size is similar to that of ox horn.
常用：
Commonly used:
引線型鋁電解電容：
Lead type aluminum electrolytic capacitor:

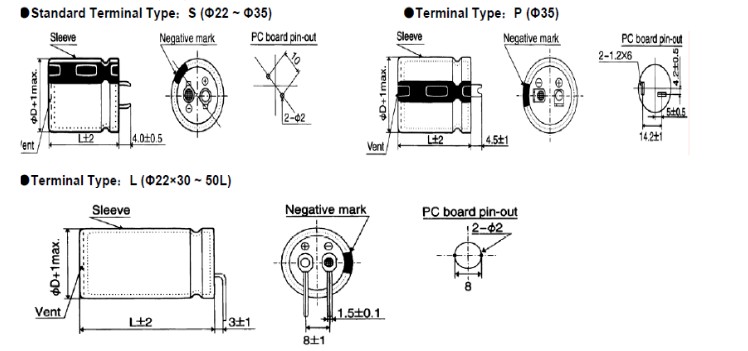

焊針型鋁電解電容：二角和四角
Pin type aluminum electrolytic capacitors: two corners and four corners
螺栓型鋁電解電容：
Bolt type aluminum electrolytic capacitor:
不常用型：
Uncommon type:
三角焊針型鋁電解電容：
Triangle welding pin type aluminum electrolytic capacitor:
焊片型鋁電解電容
Soldered aluminum electrolytic capacitor
電解電容封裝的意義
Significance of electrolytic capacitor packaging
1.電解電容器通常是由金屬箔(鋁/鉭)作為正電極,金屬箔的絕薄膜或電解質聚合物構成；
1. The electrolytic capacitor is usually made of metal foil (aluminum / tantalum) as positive electrode, thin film of metal foil or electrolyte polymer;
2.鉭電解電容器的負電極通常采用二氧化錳。由于均以電解質作為負電極（注意和電介質區分），電解電容器因而得名。?
2. The negative electrode of tantalum electrolytic capacitor is usually manganese dioxide. Because of the electrolyte as the negative electrode (pay attention to distinguish from the dielectric), the electrolytic capacitor gets its name. A kind of
3.有極性電解電容器通常在電源電路或中頻、低頻電路中起電源濾波、退耦、信號耦合及時間常數設定、隔直流等作用。一般不能用于交流電源電路，在直流電源電路中作濾波電容使用時，其陽極（正極）應與電源電壓的正極端相連接，陰極（負極）與電源電壓的負極端相連接，不能接反，否則會損壞電容器。
3. The polar electrolytic capacitor usually plays the role of power filter, decoupling, signal coupling, time constant setting, DC isolation and so on in power supply circuit or intermediate frequency and low frequency circuit. Generally, it can not be used in AC power supply circuit. When it is used as filter capacitor in DC power supply circuit, its anode (positive pole) should be connected with the positive terminal of power supply voltage, and the cathode (negative pole) should be connected with the negative terminal of power supply voltage. Otherwise, the capacitor will be damaged.
4.電解電容器廣泛應用于家用電器和各種電子產品中，其容量范圍較大，一般為1~1000μF，額定工作電壓范圍為6.3~450V。其缺點是介質損耗、容量誤差較大（最大允許偏差為+100%、-20%），耐高溫性較差，存放時間長容易失效。
4. Electrolytic capacitor is widely used in household appliances and various electronic products, its capacity range is large, generally 1 ~ 1000 μ F, and the rated working voltage range is 6.3 ~ 450 v. Its disadvantages are large medium loss and capacity error (the maximum allowable deviation is + 100%, - 20%), poor high temperature resistance, long storage time and easy failure.
電解電容器廣泛應用于家用電器和各種電子產品中，其容量范圍較大，一般為1~33000μF，額定工作電壓范圍為6.3~700V。其缺點是介質損耗、容量誤差較大（最大允許偏差為+100%、-20%），耐高溫性較差，存放時間長容易失效。
Electrolytic capacitors are widely used in household appliances and various electronic products. Their capacity ranges from 1 to 33000 μ F, and the rated operating voltage ranges from 6.3 to 700 v. Its disadvantages are large medium loss and capacity error (the maximum allowable deviation is + 100%, - 20%), poor high temperature resistance, long storage time and easy failure.
